Fig. 1002

Figure 1002 Union Assembly

SPM hammer union assembly for Figure 1002 connections with pressure seal.

Fig. 1002

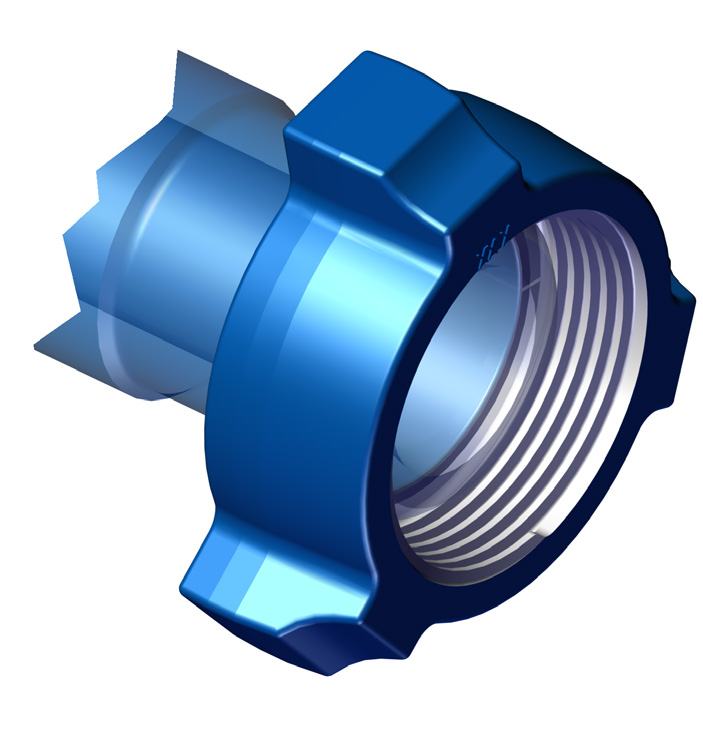

Figure 1002 Wing Nut

SPM hammer union wing nut for Figure 1002 connections.

Fig. 1502

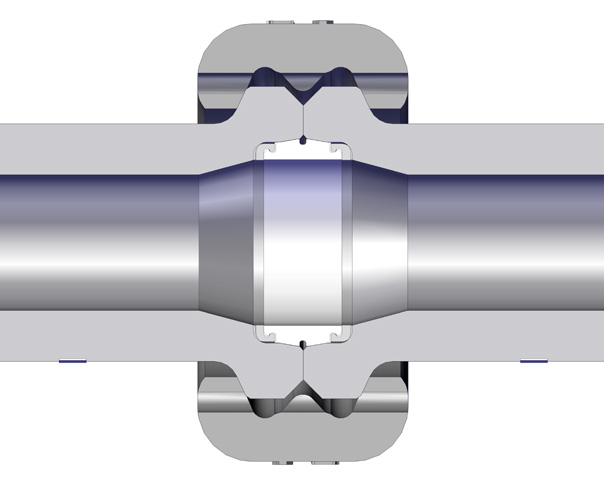

Figure 1502 Union Assembly

SPM hammer union assembly for Figure 1502 connections. Available in buttweld and pressure seal, standard and H2S service.

Fig. 1502

Figure 1502 Wing Nut

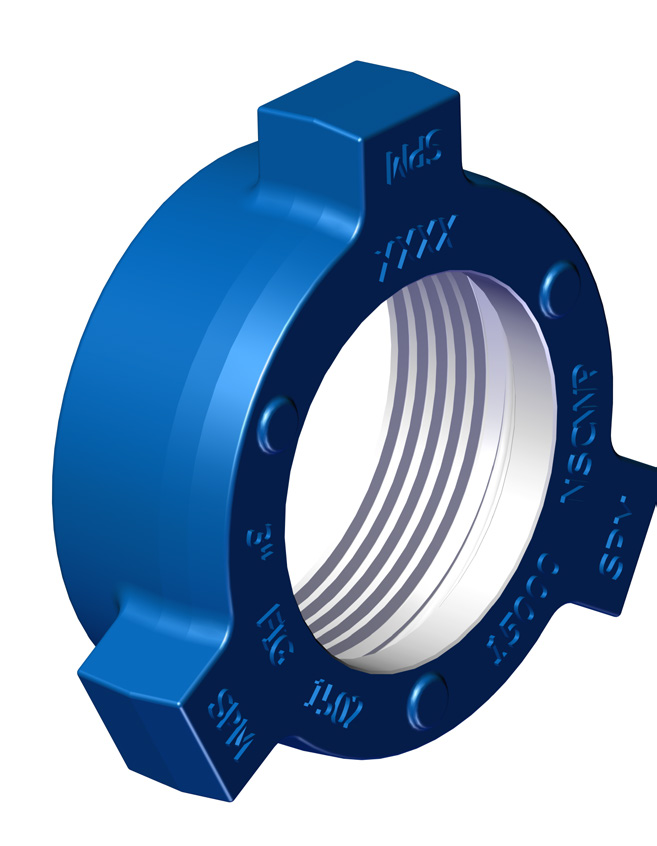

SPM hammer union wing nut for Figure 1502 connections. Available in standard and H2S service, including EXL variant.

Fig. 200

Figure 200 Union Assembly

SPM hammer union assembly for Figure 200 connections with pressure seal.

Fig. 200

Figure 200 Wing Nut

SPM hammer union wing nut for Figure 200 connections. Pressure-tight, positive sealing for standard service.

Fig. 2002

Figure 2002 Wing Nut

SPM hammer union wing nut for Figure 2002 connections.

Fig. 206

Figure 206 Union Assembly

SPM hammer union assembly for Figure 206 connections. Available in buttweld and pressure seal.

Fig. 206

Figure 206 Wing Nut

SPM hammer union wing nut for Figure 206 connections.

1" x 2" Plug Valve

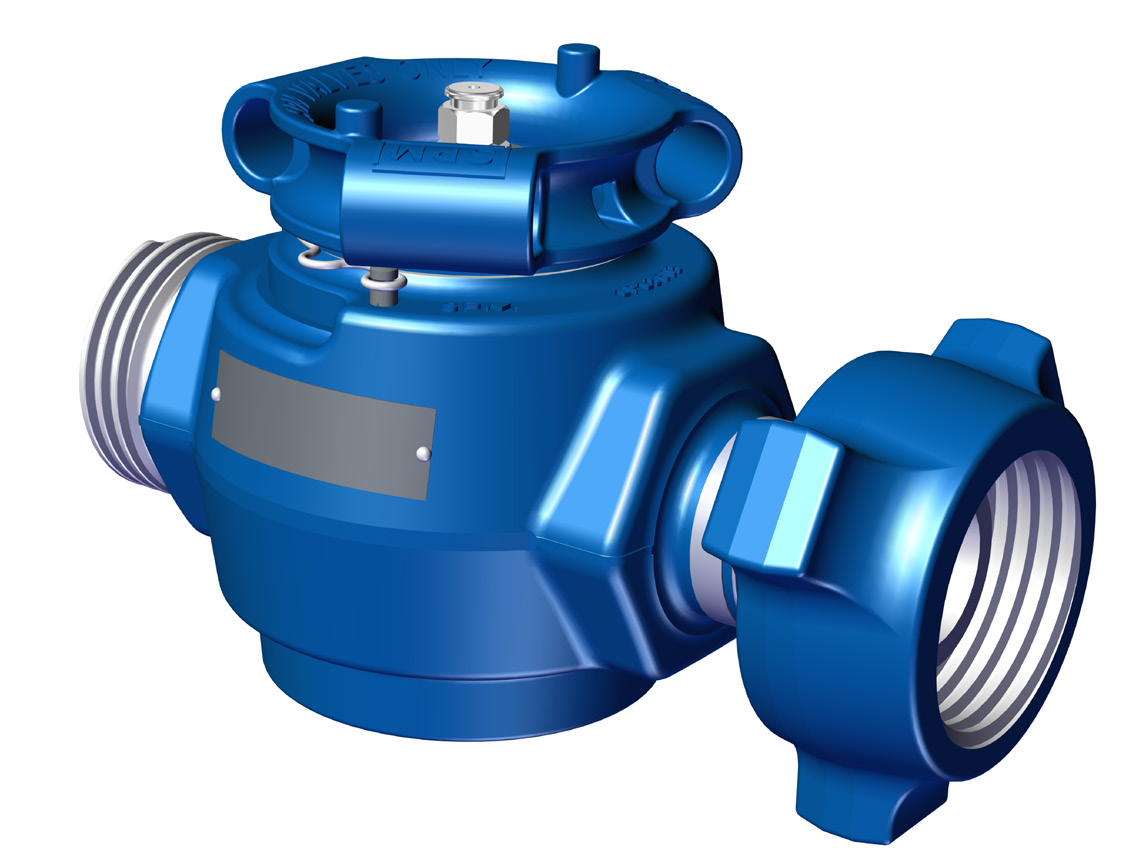

Compact quarter-turn isolation valve for pressures up to 15,000 psi. Available in manual, air, or hydraulic actuated configurations.

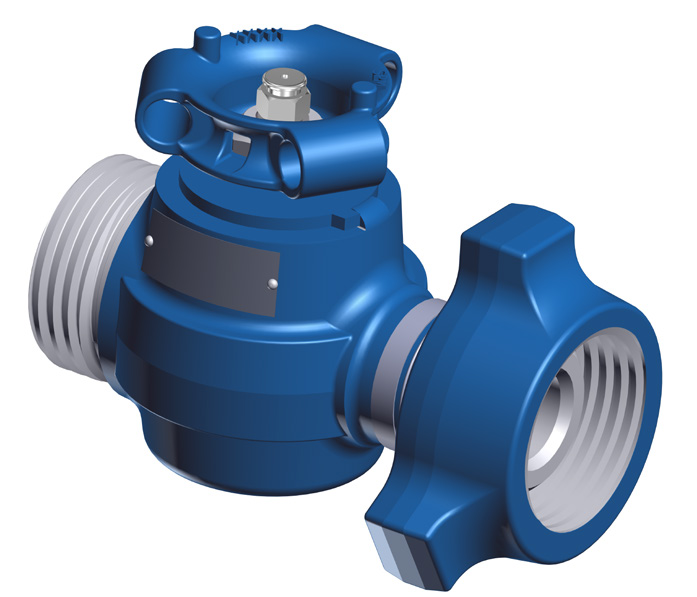

2" Light Weight Plug Valve

Lightweight quarter-turn isolation valve engineered for safety, designed to meet HSE lifting requirements in the North Sea. Weighs 51 lbs (23.1 kg). Rated for non-shock, cold working pressures up to 15,000 psi. CE Compliant (97/23/EC), available with DNV Certification.

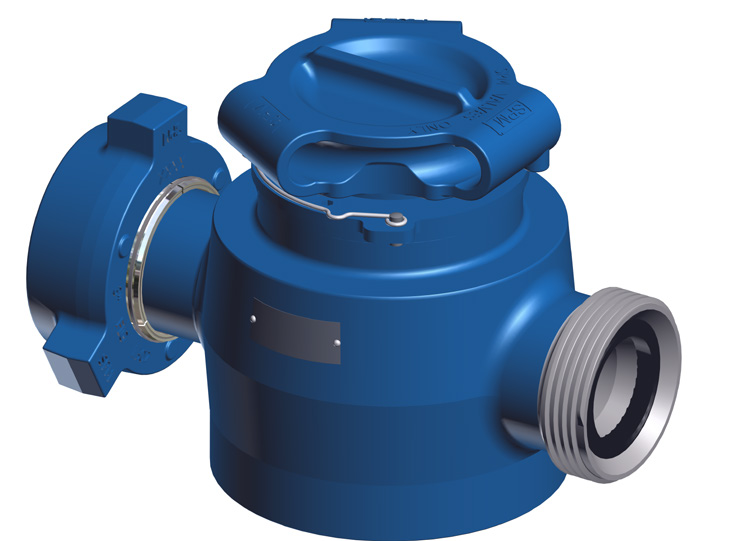

2" Plug Valve (Standard)

Quarter-turn isolation valve rated for pressures up to 15,000 psi. Available in manual, air, or hydraulic actuated configurations.

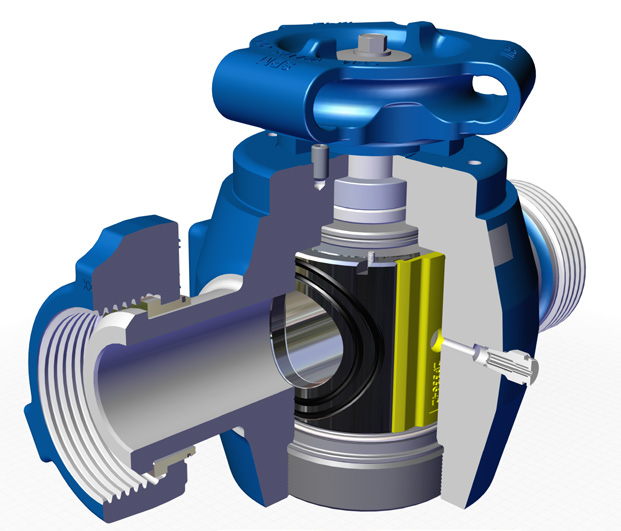

3" 1502 EXL Plug Valve

Enhanced plug valve designed for longer life and reliable sealing in harsh pumping operations. Features dual engineered face seals, free-floating plug design, and dual side-entry grease inserts with channelled plug for improved grease distribution. Available with hammer union or Safety Iron end connections.

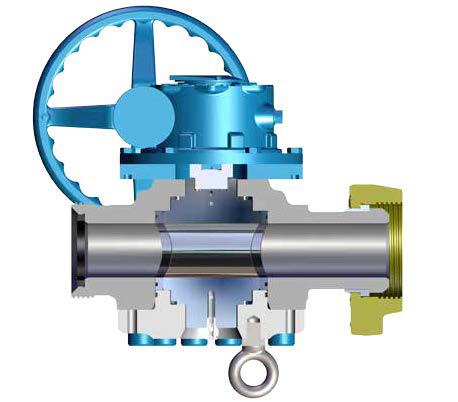

3" 1502 Plug Valve (Legacy)

Legacy design 3" quarter-turn isolation valve with pressure ratings up to 15,000 psi. Available with manual, wheel (gear), and hydraulic actuator options. Features floating plug design and precision-ground seal segments.

4" 1002 Plug Valve (Legacy)

Legacy design 4" quarter-turn isolation valve with 1002 connections. Available with wheel (gear) and hydraulic actuator options. Features floating plug design and precision-ground seal segments.

4" 1502 Plug Valve (Legacy)

Legacy design 4" quarter-turn isolation valve with 1502 connections rated for pressures up to 15,000 psi. Available with wheel (gear) and hydraulic actuator options.

2" 1502 SD Clapper Check Valve

Clapper style check valve for 2" 1502 connections, rated for pressures up to 15,000 psi. Available in standard flow (wing-ahead) or reverse flow (thread-ahead) configurations. Designed for fluids containing solid materials such as proppants, solids, and ball sealers.

2" Dart Check Valve

Dart style check valve that permits fluid to flow towards the well while impeding back flow. Constructed of a two-piece body housing an inline spring loaded dart. Intended for non-abrasive media applications such as nitrogen pumping.

3" 1502 SD Clapper Check Valve

Clapper style check valve for 3" 1502 connections, rated for pressures up to 15,000 psi. Available in standard flow, reverse flow, and Safety Iron configurations.

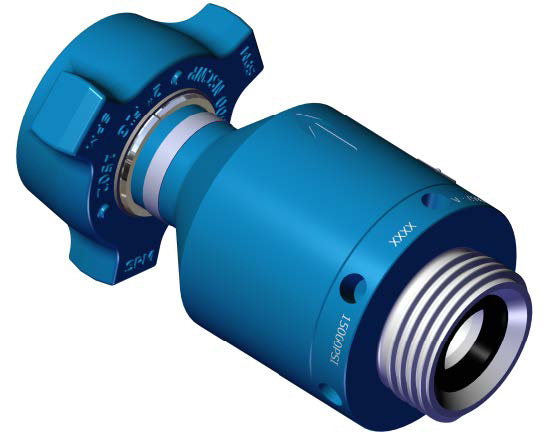

3" Dart Check Valve

Dart style check valve for 3" connections. Permits fluid to flow towards the well while impeding back flow. Intended for non-abrasive media applications.

4" 1002 SD Clapper Check Valve

Clapper style check valve for 4" 1002 connections. Available in standard flow, reverse flow, and Safety Iron configurations.

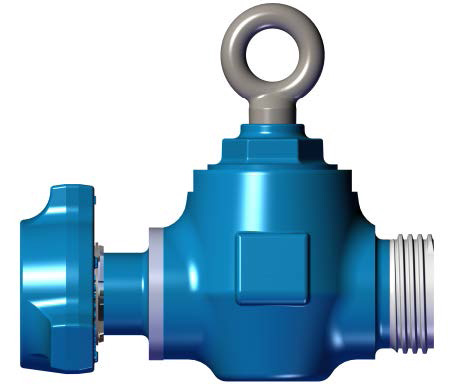

4" 1502 SD Clapper Check Valve

Clapper style check valve for 4" 1502 connections, rated for pressures up to 15,000 psi. Available in standard flow and reverse flow configurations.

4" 15K SD Clapper Check Valve (Safety Iron)

Clapper style check valve for 4" 15K Safety Iron connections.

2" Spring Relief Valve

Direct acting spring actuated relief valve for emergency pressure relief. Externally adjustable using hex screw. Seat made from high strength, corrosion resistant material. Designed for operating temperatures from -30°C to +110°C. Max discharge rate approximately 150 gpm.

3" EXL Back Pressure Relief Valve

Next generation nitrogen actuated relief valve with enhanced internal geometry, unique sealing components, and robust forging. Resets near sequencing pressure for uninterrupted pumping stages. Approximate flow rate of 2,000 gpm. Should be set at minimum 1,000 psi above system operating pressure.

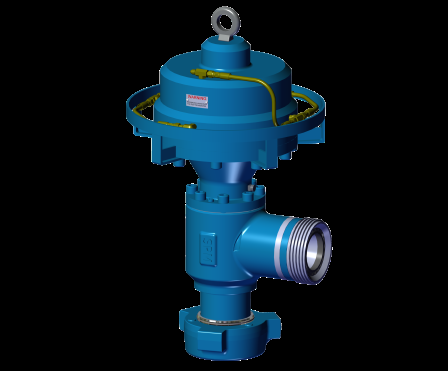

3" Nitrogen Full Bore Unloading Valve

Full bore unloading valve that operates as a dump valve, remaining open until the pump system is shut down and the valve is reset. Recommended for operators who want full system shutdown after an overpressure event. Externally adjustable from 1,000 psi to maximum setting.

3" Spring Relief Valve

Direct acting spring actuated relief valve for 3" connections. Externally adjustable. Designed for emergency pressure relief with max discharge rate of approximately 430 gpm.

Automated Relief Valve Control (A.R.C.) System

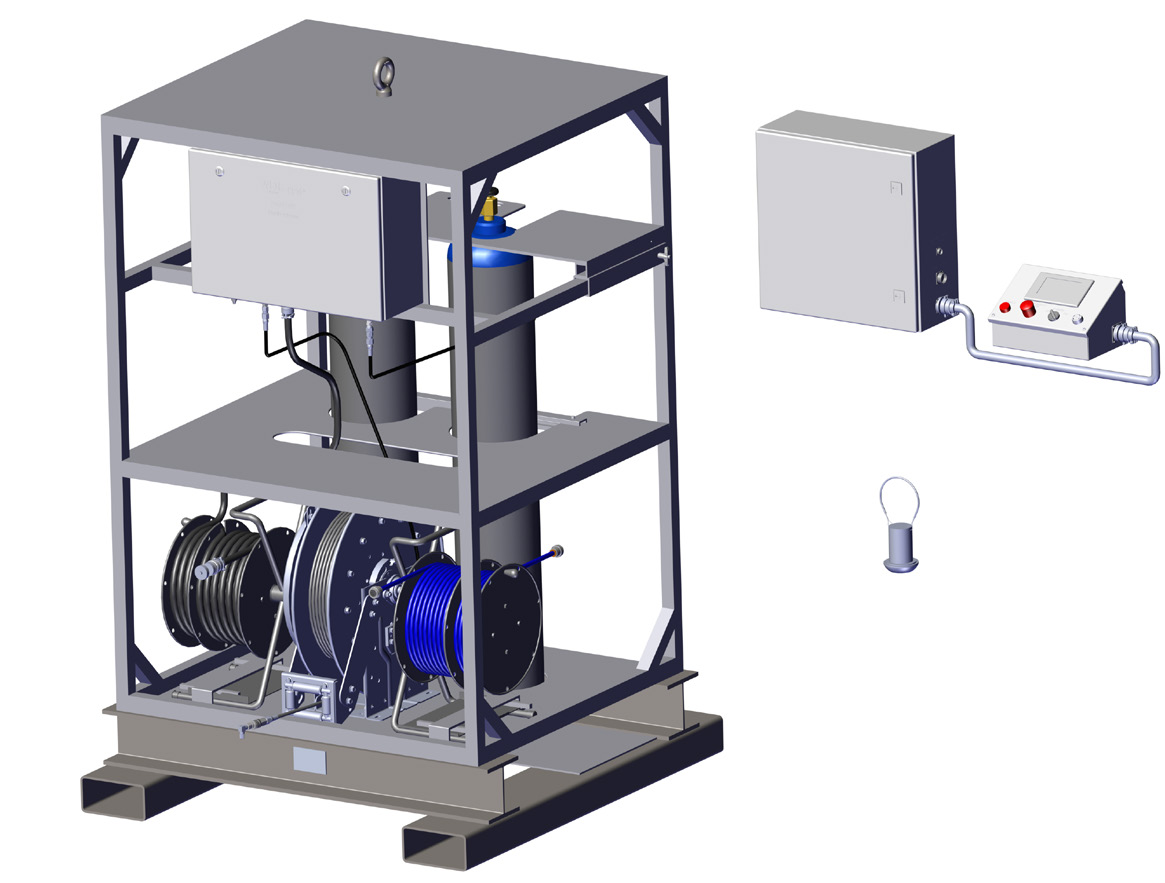

Remote electronic control system for operating SPM nitrogen relief valves. Provides accurate sequencing pressure calibration via touch screen panel located away from the flow line. Features 30-minute backup battery, visual and audible alarms, emergency dump valve button, and PSI to MPa units toggle.

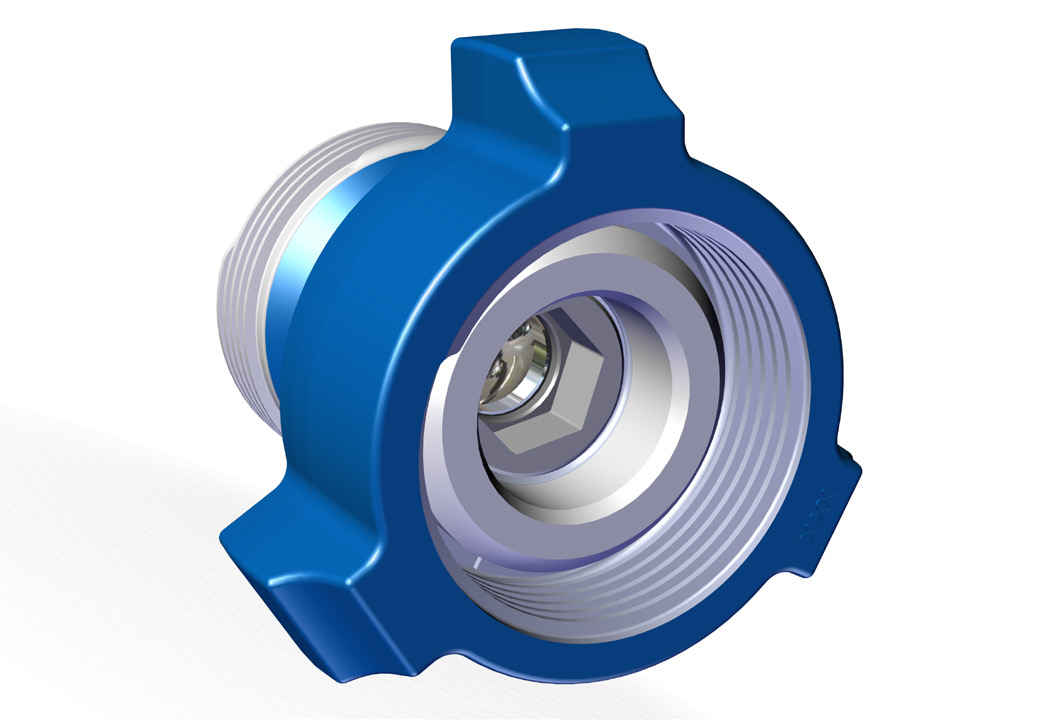

SPM EXL Pressure Relief Disc

Replaceable rupture disc for overpressure protection, intended to be used alongside SPM nitrogen or spring relief valves. In-line housing (MxF) installs on fluid ends or within treating iron lines. Replaceable discs available in wide range of set pressures with burst pressure tolerance of +/- 5%. Rupture disc machined from durable, corrosion resistant material. Sold as separate housing and disc kit assemblies.

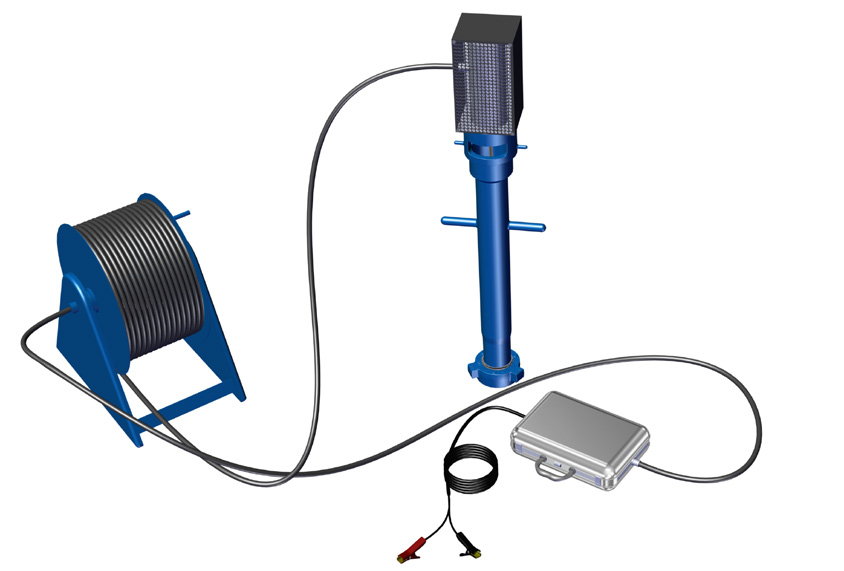

3" 1502 Ball Injector

SPM Sur-Drop ball injector featuring a Positive Feed System for reliable feed and injection rate. Supports ball sizes from .88" to 1.25". Two-piece screw assembly allows convenient replacement of the drive stem. Adaptor kits available to adjust ball size range by replacing inner screw and inner housing.

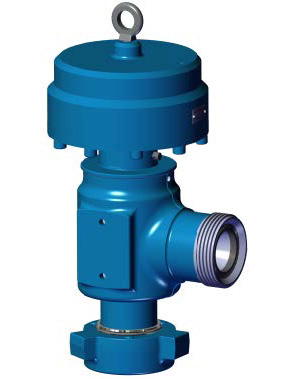

2" Adjustable Choke

Adjustable choke valve using a stem and seat combination to control flow rate. Flow adjusted by turning the hand wheel to a calibrated orifice size. Orifice indicator calibrated in 1/64" increments with V-notch alignment. Maximum orifice size of 1".

2" Positive Choke

Positive choke valve providing fixed flow rate through the use of a choke bean. Flow rate controlled by choke bean orifice size.

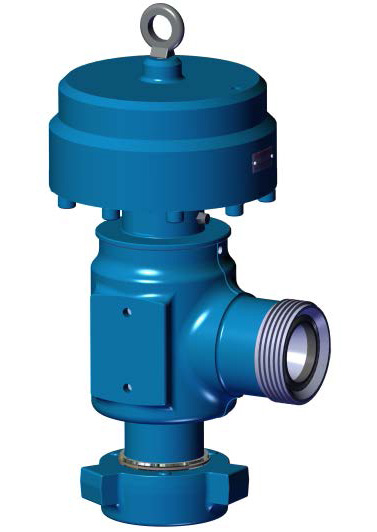

3" Adjustable Choke

Adjustable choke valve for 3" 1502 connections. Maximum orifice size of 2". Uses stem and seat combination with hand wheel adjustment.

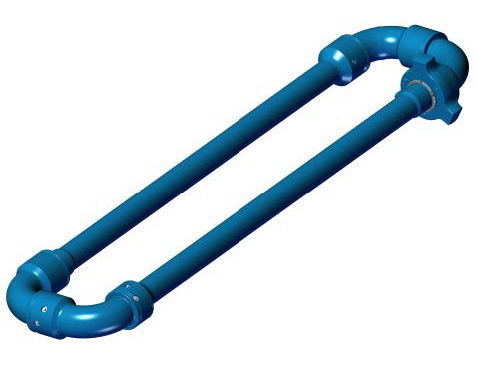

2" 1502 Hose Loop

All-steel hose loop utilizing field-proven SPM swivel joints for greater flexibility, shock and vibration resistance, and uniform flow. Designed to easily fold up for storage and transportation.

2" 1502 Pup Joint

Single piece of forged metal with machined hammer union or Safety Iron connections (no subs). Forged surface on O.D. Available in standard lengths only. Tolerance: +/-.25".

3" 1502 Pup Joint

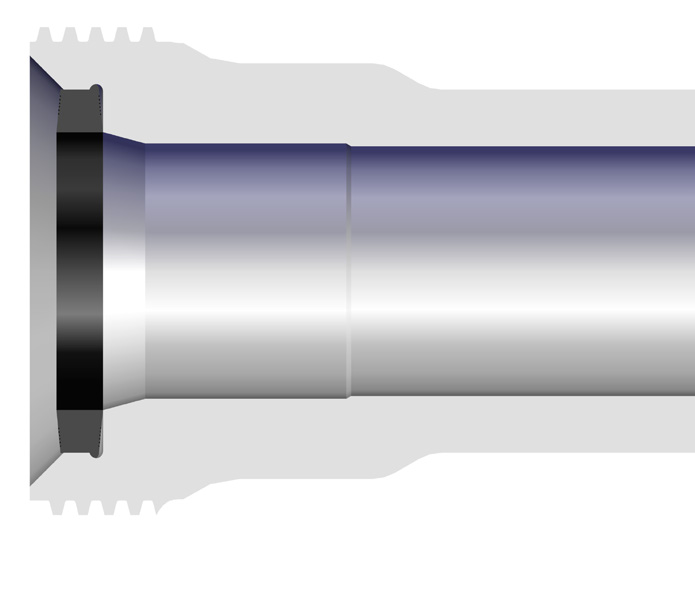

Single piece of forged metal with machined hammer union or Safety Iron connections (no subs). Forged surface on O.D. Available in standard lengths only. Tolerance: +/-.25".

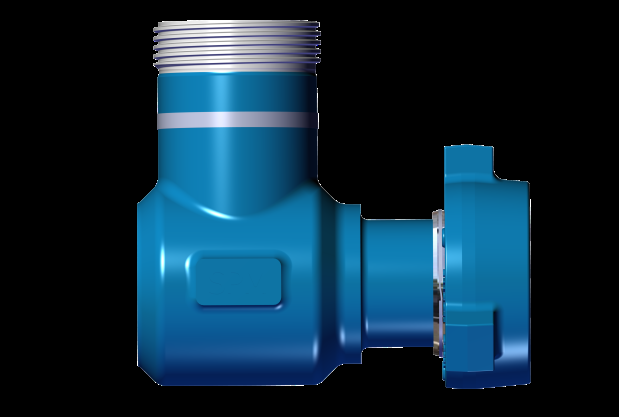

90 Degree Ells

Integral union 90 degree elbow connections. Available in standard, target, and 45 degree configurations.

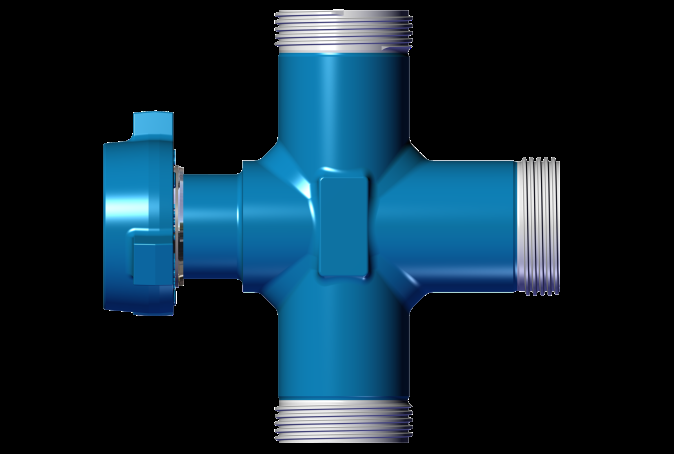

Crosses

Integral union cross connections with four branch configurations. Manufactured from high strength alloy steel forgings.

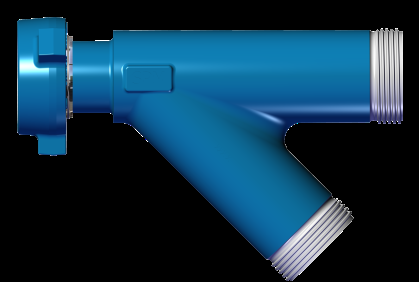

Laterals

Integral union connections available in lateral configurations. Manufactured from high strength alloy steel forgings. Available in 2" through 4" sizes with pressure ratings to 15,000 psi NSCWP.

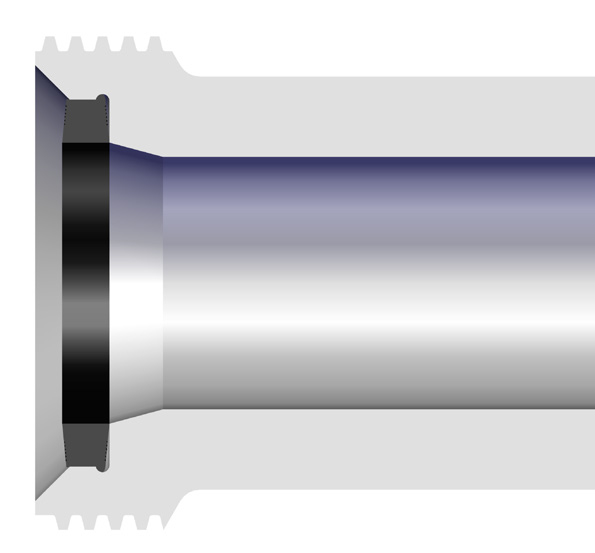

Long Crossovers (24" and over)

Single piece of forged metal with machined hammer union or Safety Iron connections. Machined surface on O.D. Custom lengths available.

Long Radius Ells

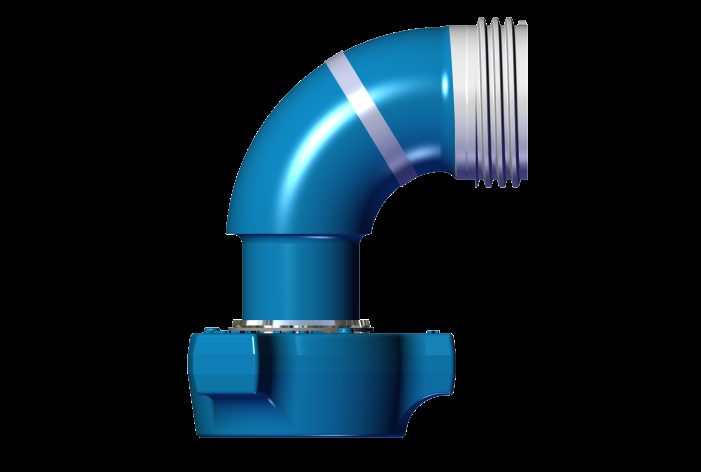

Integral union long radius elbow connections for reduced pressure drop and flow turbulence.

Short Crossovers (under 24")

Single piece of forged metal with machined hammer union or Safety Iron connections (no subs). Machined surface on O.D. Custom lengths available. For connecting different size or type flowline equipment.

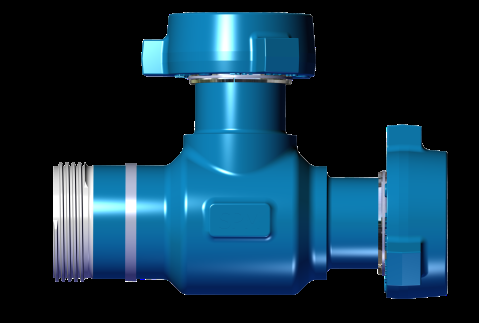

Tees

Integral union tee connections. Manufactured from high strength alloy steel forgings. Available in 2" through 4" sizes.

2" 1502 NPS Pipe

Non-pressure seal pipe with elastomer seal protecting threads from high pressure fluid exposure. Threaded sub incorporates epoxy for a permanent assembly bond. Includes identification groove on all non-pressure seal threaded subs per API RP-7HU1. Tolerance: +/-.72".

3" 1502 NPS Pipe

Non-pressure seal pipe for 3" 1502 connections. Elastomer seal protects threads. Tolerance: +/-.72".

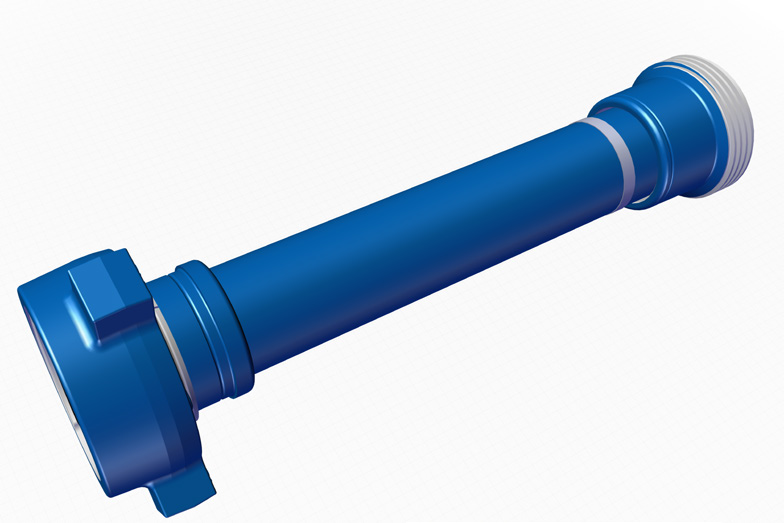

4" 1002 NPS Pipe

Non-pressure seal pipe for 4" 1002 connections. Elastomer seal protects threads. Tolerance: +/-.72".

Fig. 10

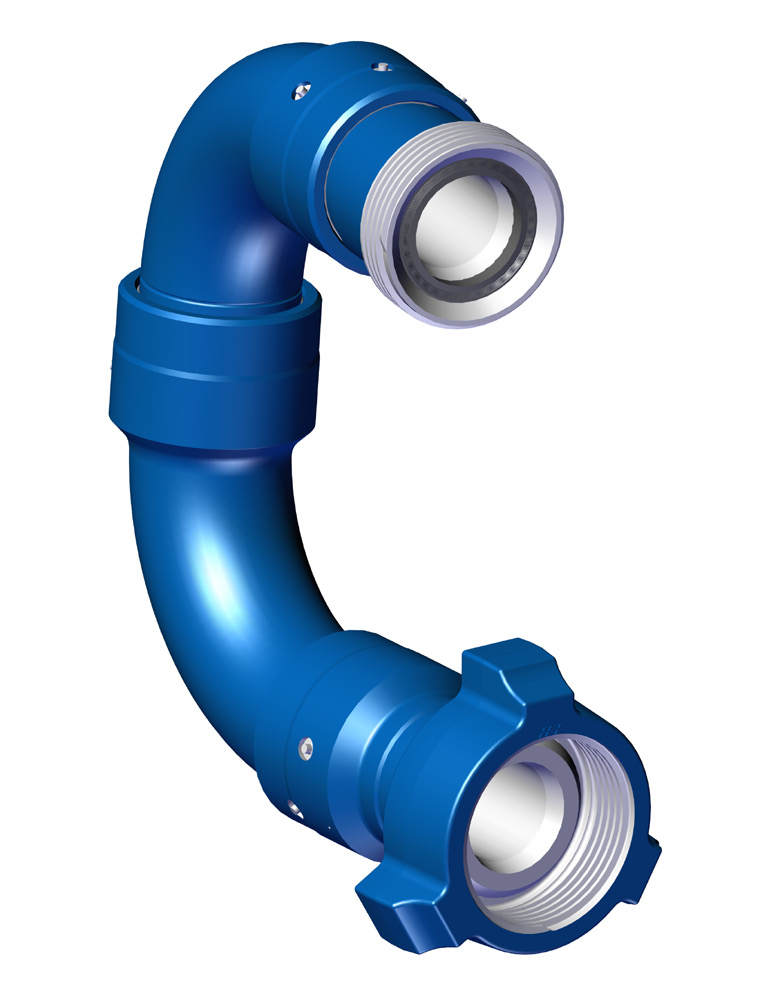

Style 10 Swivel

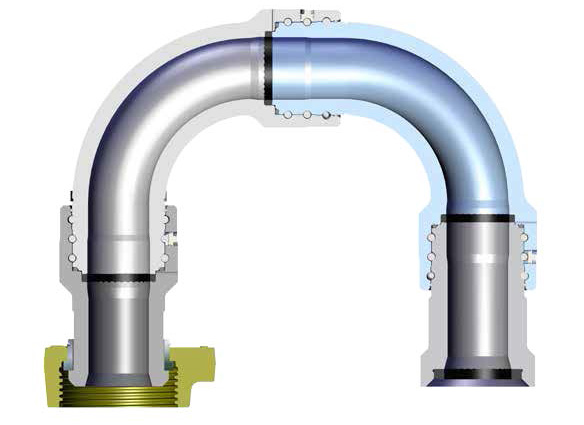

U-bend swivel available in MxF, MxM, and Safety Iron configurations. Available in 2" through 4" sizes with pressure ratings up to 15,000 psi. Features uniform wall thickness and robust ball bearing connection.

Fig. 100

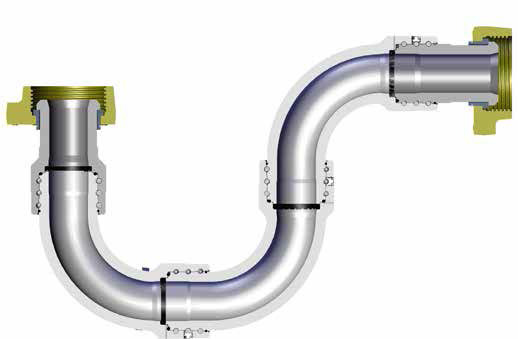

Style 100 Swivel

U-bend with extended legs swivel available in MxM and MxF configurations. Features four dimensions for complex routing. Available in 2" and 3" sizes.

Fig. 20

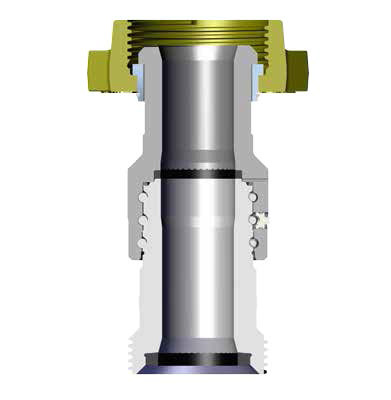

Style 20 Swivel

Straight-through inline swivel in MxF configuration. Compact design for tight installations.

Fig. 30

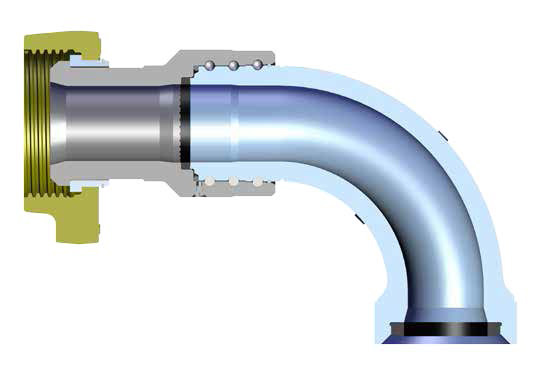

Style 30 Swivel

45-degree angle swivel in MxF configuration. Features uniform wall thickness throughout.

Fig. 50

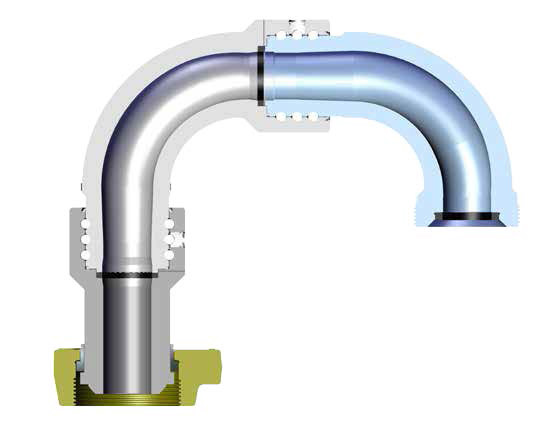

Style 50 Swivel

90-degree elbow swivel available in MxF and FxF configurations. Available in 2" through 4" sizes.

Fig. 60

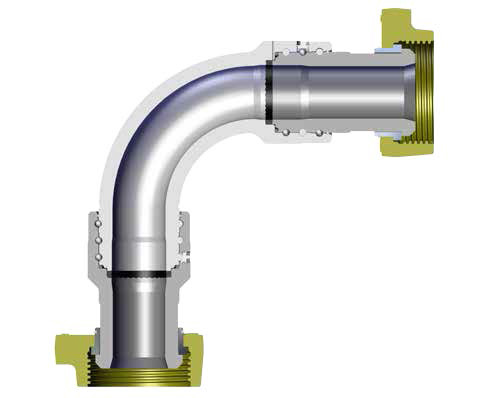

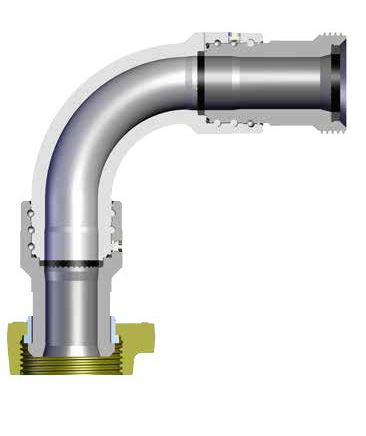

Style 60 Swivel

90-degree elbow swivel available in MxM and MxF configurations. Compact 90-degree design.

Fig. 80

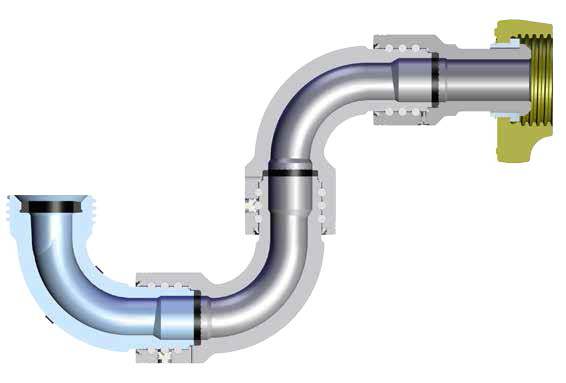

Style 80 Swivel

S-bend swivel in MxF configuration combining a 90-degree and 45-degree bend. Available in 2" and 3" sizes.
