Style 10 Swivel

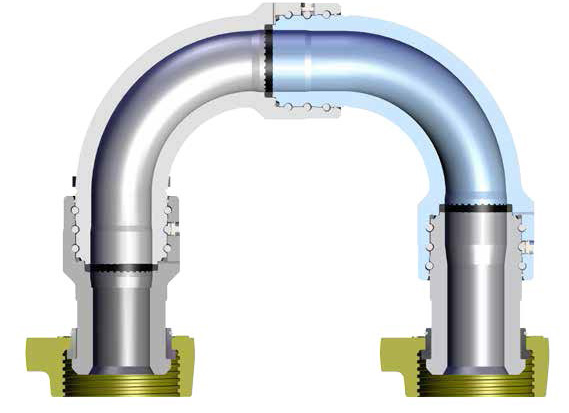

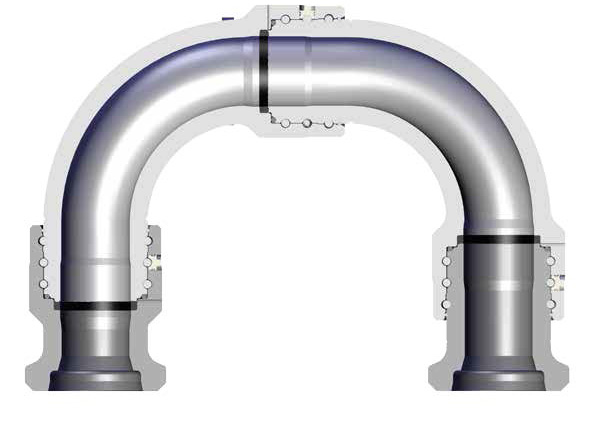

MxFMxMSafety Iron

Style 10 Swivel

U-bend swivel available in MxF, MxM, and Safety Iron configurations. Available in 2" through 4" sizes with pressure ratings up to 15,000 psi. Features uniform wall thickness and robust ball bearing connection.

Specifications

Style 10
Configurations 16 variants
Enquire about this product
SPM Flow Catalogue

Configurations (16)

2" 1502M x 1502F
Std.

P/N: 2A17135

Temperature Low
Dim. A 10.69 / 271.5
Dim. B 10.91 / 277.1
Dim. C 10.90 / 276.8
Inner Dia. C.E.*
Weight 67 / 29.9
Parts Kit 4L17126
2" 1502M x 1502M
Std.

P/N: 2A17205

Temperature Low
Dim. A 10.69 / 271.5
Dim. B 10.91 / 277.1
Dim. C 10.90 / 276.8
Inner Dia. C.E.*
Weight 77 / 34.9
Parts Kit 4L17126
2" 15K SI x 15K SI
Std.

P/N: 2A17893

Temperature Low
Dim. A 10.69 / 271.5
Dim. B 9.94 / 252.5
Dim. C 9.94 / 252.5
Inner Dia. C.E.*
Weight 54 / 24.5
Parts Kit 4L17126
2" 1502M x 1502F
H2S

P/N: 2A17171

Temperature Low
Dim. A 10.69 / 271.5
Dim. B 10.91 / 277.1
Dim. C 10.90 / 276.8
Inner Dia. C.E.*
Weight 67 / 29.9
Parts Kit 4L17193
2" 1502M x 1502M
H2S

P/N: 2A17277

Temperature Low
Dim. A 10.69 / 271.5
Dim. B 10.91 / 277.1
Dim. C 10.90 / 276.8
Inner Dia. C.E.*
Weight 77 / 34.9
Parts Kit 4L17193
3" 1502M x 1502F
Std.

P/N: 2A17920

Temperature Low
Dim. A 16.37 / 415.8
Dim. B 14.54 / 369.3
Dim. C 14.49 / 368
Inner Dia. C.E.*
Weight 134 / 60.8
Parts Kit 4L17660
3" 1502M x 1502M
Std.

P/N: 2A28766

Temperature Low
Dim. A 16.37 / 415.8
Dim. B 14.50 / 368.3
Dim. C 14.49 / 368
Inner Dia. C.E.*
Weight 147 / 66.7
Parts Kit 4L17660
3" 15K SI x 15K SI
Std.

P/N: 2A17945

Temperature Low
Dim. A 16.37 / 415.8
Dim. B 13.00 / 330.2
Dim. C 13.00 / 330.2
Inner Dia. C.E.*
Weight 114 / 51.7
Parts Kit 4L17660
3" 1502M x 1502F
H2S

P/N: 2A17986

Temperature Low
Dim. A 16.38 / 416
Dim. B 14.50 / 368.3
Dim. C 14.50 / 368.3
Inner Dia. C.E.*
Weight 134 / 60.8
Parts Kit 4L17305
3" 1502M x 1502M
H2S

P/N: 2A17987

Temperature Low
Dim. A 16.38 / 416
Dim. B 14.50 / 368.3
Dim. C 14.50 / 368.3
Inner Dia. C.E.*
Weight 147 / 66.7
Parts Kit 4L17305
4" 1002M x 1002F
Std.

P/N: 2A17925

Temperature Low
Dim. A 18.18 / 461.8
Dim. B 16.19 / 411.2
Dim. C 17.18 / 436.4
Inner Dia. C.E.*
Weight 209 / 94.8
Parts Kit 4L17721
4" 1002M x 1002M
Std.

P/N: 2A17929

Temperature Low
Dim. A 18.18 / 461.8
Dim. B 16.19 / 411.2
Dim. C 16.19 / 411.2
Inner Dia. C.E.*
Weight 219 / 99.3
Parts Kit 4L17721
4" 10K SI x 10K SI
Std.

P/N: 2A29809

Temperature Low
Dim. A 18.18 / 461.8
Dim. B 14.50 / 368.3
Dim. C 14.50 / 368.3
Inner Dia. C.E.*
Weight 179 / 81.2
Parts Kit 4L17721
4" 1502M x 1502F
Std.

P/N: 2A17765

Temperature Low
Dim. A 20.41 / 518.4
Dim. B 20.41 / 518.4
Dim. C 20.40 / 518.2
Inner Dia. C.E.*
Weight 326 / 147.9
Parts Kit 4L17785
4" 1502M x 1502M
Std.

P/N: 2A17737

Temperature Low
Dim. A 21.20 / 538.5
Dim. B 20.41 / 518.4
Dim. C 20.41 / 518.4
Inner Dia. C.E.*
Weight 352 / 159.7
Parts Kit 4L17785
4" 15K SI x 15K SI
Std.

P/N: 2A17894

Temperature Low
Dim. A 21.20 / 538.5
Dim. B 16.51 / 419.4
Dim. C 16.51 / 419.4
Inner Dia. C.E.*
Weight 282 / 127.9
Parts Kit 4L17785

Note: Other parts or configurations may be available. Contact us for specific details. Listed weights are approximate. C.E.* — Contact Engineering.
