MxMMxF

Style 100 Swivel

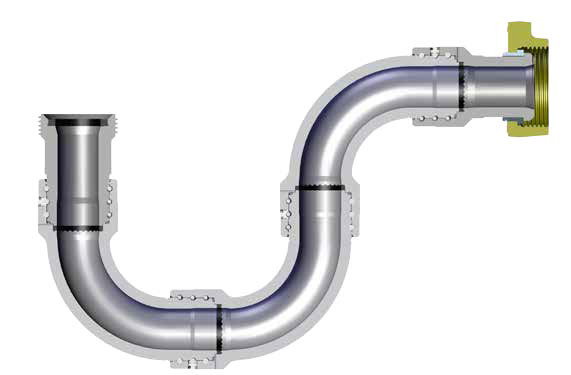

U-bend with extended legs swivel available in MxM and MxF configurations. Features four dimensions for complex routing. Available in 2" and 3" sizes.

Specifications

Style 100

Configurations 7 variants

Enquire about this product

SPM Flow Catalogue

Configurations (7)

2" 1502M x 1502M

Std.

P/N: 2A17274

Temperature Low

Dim. A 10.69 / 271.5

Dim. B 10.91 / 277.1

Dim. C 10.90 / 276.9

Inner Dia. C.E.*

Weight 98 / 44.5

Parts Kit 4L17126

Dim. D 10.69 / 271.5

2" 1502M x 1502F

Std.

P/N: 2A17272

Temperature Low

Dim. A 10.69 / 271.5

Dim. B 10.91 / 277.1

Dim. C 10.90 / 276.9

Inner Dia. C.E.*

Weight 85 / 38.6

Parts Kit 4L17126

Dim. D 10.69 / 271.5

2" 1502M x 1502F

H2S

P/N: 2A17285

Temperature Low

Dim. A 10.69 / 271.5

Dim. B 10.91 / 277.1

Dim. C 10.90 / 276.9

Inner Dia. C.E.*

Weight 85 / 38.6

Parts Kit 4L17193

Dim. D 10.69 / 271.5

3" 1502M x 1502M

Std.

P/N: 2A17937

Temperature Low

Dim. A 16.37 / 415.8

Dim. B 14.50 / 368.3

Dim. C 14.50 / 368.3

Inner Dia. C.E.*

Weight 186 / 84.4

Parts Kit 4L17660

Dim. D 16.38 / 416

3" 1502M x 1502F

Std.

P/N: 2A17955

Temperature Low

Dim. A 16.34 / 415

Dim. B 14.51 / 368.6

Dim. C 14.46 / 367.3

Inner Dia. C.E.*

Weight 174 / 78.9

Parts Kit 4L17660

Dim. D 16.34 / 415

3" 15K SI x 15K SI

Std.

P/N: 2A17979

Temperature Low

Dim. A 16.37 / 415.8

Dim. B 13.00 / 330.2

Dim. C 13.00 / 330.2

Inner Dia. C.E.*

Weight 155 / 70.3

Parts Kit 4L17660

Dim. D 16.37 / 415.8

3" 1502M x 1502F

H2S

P/N: 2A17982

Temperature Low

Dim. A 16.34 / 415

Dim. B 14.51 / 368.6

Dim. C 14.46 / 367.3

Inner Dia. C.E.*

Weight 174 / 78.9

Parts Kit 4L17305

Dim. D 16.34 / 415

#
1	2"	1502M x 1502M	Low	Std.	2A17274	10.69 / 271.5	10.91 / 277.1	10.90 / 276.9	C.E.*	98 / 44.5	4L17126	10.69 / 271.5
2	2"	1502M x 1502F	Low	Std.	2A17272	10.69 / 271.5	10.91 / 277.1	10.90 / 276.9	C.E.*	85 / 38.6	4L17126	10.69 / 271.5
3	2"	1502M x 1502F	Low	H2S	2A17285	10.69 / 271.5	10.91 / 277.1	10.90 / 276.9	C.E.*	85 / 38.6	4L17193	10.69 / 271.5
4	3"	1502M x 1502M	Low	Std.	2A17937	16.37 / 415.8	14.50 / 368.3	14.50 / 368.3	C.E.*	186 / 84.4	4L17660	16.38 / 416
5	3"	1502M x 1502F	Low	Std.	2A17955	16.34 / 415	14.51 / 368.6	14.46 / 367.3	C.E.*	174 / 78.9	4L17660	16.34 / 415
6	3"	15K SI x 15K SI	Low	Std.	2A17979	16.37 / 415.8	13.00 / 330.2	13.00 / 330.2	C.E.*	155 / 70.3	4L17660	16.37 / 415.8
7	3"	1502M x 1502F	Low	H2S	2A17982	16.34 / 415	14.51 / 368.6	14.46 / 367.3	C.E.*	174 / 78.9	4L17305	16.34 / 415

Note: Other parts or configurations may be available. Contact us for specific details. Listed weights are approximate. C.E.* — Contact Engineering.
