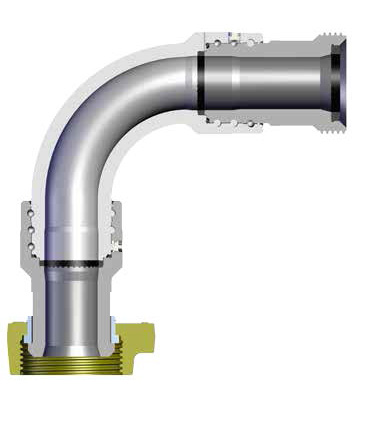

MxMMxF

Style 60 Swivel

90-degree elbow swivel available in MxM and MxF configurations. Compact 90-degree design.

Specifications

Style 60

Configurations 5 variants

Enquire about this product

SPM Flow Catalogue

Configurations (5)

2" 1502M x 1502M

Std.

P/N: 2A17293

Temperature Low

Dim. A 10.91 / 277.1

Dim. B 10.90 / 276.9

Inner Dia. C.E.*

Weight 48 / 21.8

Parts Kit 4L17126

2" 1502M x 1502F

Std.

P/N: 2A17494

Temperature Low

Dim. A 10.91 / 277.1

Dim. B 10.90 / 276.9

Inner Dia. C.E.*

Weight 36 / 16.3

Parts Kit 4L17126

3" 1502M x 1502M

Std.

P/N: 2A17953

Temperature Low

Dim. A 14.50 / 368.3

Dim. B 14.50 / 368.3

Inner Dia. C.E.*

Weight 107 / 48.5

Parts Kit 4L17660

3" 1502M x 1502F

Std.

P/N: 2A17969

Temperature Low

Dim. A 14.50 / 368.3

Dim. B 14.46 / 367.3

Inner Dia. C.E.*

Weight 95 / 43.1

Parts Kit 4L17660

3" 15K SI x 15K SI

Std.

P/N: 2A17939

Temperature Low

Dim. A 13.00 / 330.2

Dim. B 13.00 / 330.2

Inner Dia. C.E.*

Weight 108 / 49

Parts Kit 4L17660

#
1	2"	1502M x 1502M	Low	Std.	2A17293	10.91 / 277.1	10.90 / 276.9	C.E.*	48 / 21.8	4L17126
2	2"	1502M x 1502F	Low	Std.	2A17494	10.91 / 277.1	10.90 / 276.9	C.E.*	36 / 16.3	4L17126
3	3"	1502M x 1502M	Low	Std.	2A17953	14.50 / 368.3	14.50 / 368.3	C.E.*	107 / 48.5	4L17660
4	3"	1502M x 1502F	Low	Std.	2A17969	14.50 / 368.3	14.46 / 367.3	C.E.*	95 / 43.1	4L17660
5	3"	15K SI x 15K SI	Low	Std.	2A17939	13.00 / 330.2	13.00 / 330.2	C.E.*	108 / 49	4L17660

Note: Other parts or configurations may be available. Contact us for specific details. Listed weights are approximate. C.E.* — Contact Engineering.
