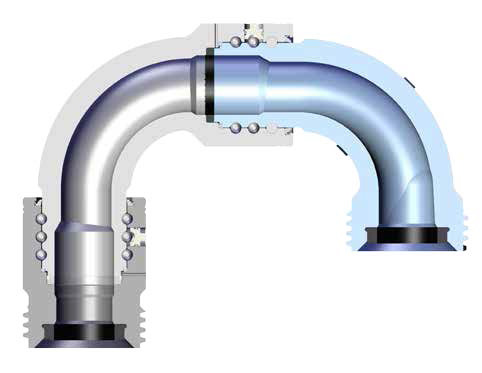

Style 50 Swivel

90-degree elbow swivel available in MxF and FxF configurations. Available in 2" through 4" sizes.

Specifications

Style 50

Configurations 9 variants

Enquire about this product

SPM Flow Catalogue

Configurations (9)

2" 1502M x 1502F

Std.

P/N: 2A17139

Temperature Low

Dim. A 10.81 / 274.6

Dim. B 10.90 / 276.9

Inner Dia. C.E.*

Weight 56 / 25.4

Parts Kit 4L17126

2" 1502F x 1502F

Std.

P/N: 2A17213

Temperature Low

Dim. A 10.69 / 271.5

Dim. B 8.80 / 223.5

Inner Dia. C.E.*

Weight 43 / 19.5

Parts Kit 4L17126

2" 1502M x 1502F

H2S

P/N: 2A17170

Temperature Low

Dim. A 10.75 / 273

Dim. B 10.90 / 276.9

Inner Dia. C.E.*

Weight 56 / 25.4

Parts Kit 4L17193

2" 1502F x 1502F

H2S

P/N: 2A17279

Temperature Low

Dim. A 10.69 / 271.5

Dim. B 8.80 / 223.5

Inner Dia. C.E.*

Weight 43 / 19.5

Parts Kit 4L17193

3" 1502M x 1502F

Std.

P/N: 2A17922

Temperature Low

Dim. A 16.36 / 415.5

Dim. B 14.50 / 368.3

Inner Dia. C.E.*

Weight 111 / 50.3

Parts Kit 4L17660

3" 1502F x 1502F

Std.

P/N: 2A17957

Temperature Low

Dim. A 16.38 / 416

Dim. B 14.50 / 368.3

Inner Dia. C.E.*

Weight 102 / 46.3

Parts Kit 4L17660

3" 1502M x 1502F

H2S

P/N: 2A17281

Temperature Low

Dim. A 16.38 / 416

Dim. B 14.50 / 368.3

Inner Dia. C.E.*

Weight 111 / 50.3

Parts Kit 4L17305

4" 1002M x 1002F

Std.

P/N: 2A17926

Temperature Low

Dim. A 18.18 / 461.8

Dim. B 16.19 / 411.2

Inner Dia. C.E.*

Weight 175 / 79.4

Parts Kit 4L17721

4" 1502M x 1502F

Std.

P/N: 2A17567

Temperature Low

Dim. A 20.41 / 518.4

Dim. B 21.20 / 538.5

Inner Dia. C.E.*

Weight 266 / 120.7

Parts Kit 4L17785

#
1	2"	1502M x 1502F	Low	Std.	2A17139	10.81 / 274.6	10.90 / 276.9	C.E.*	56 / 25.4	4L17126
2	2"	1502F x 1502F	Low	Std.	2A17213	10.69 / 271.5	8.80 / 223.5	C.E.*	43 / 19.5	4L17126
3	2"	1502M x 1502F	Low	H2S	2A17170	10.75 / 273	10.90 / 276.9	C.E.*	56 / 25.4	4L17193
4	2"	1502F x 1502F	Low	H2S	2A17279	10.69 / 271.5	8.80 / 223.5	C.E.*	43 / 19.5	4L17193
5	3"	1502M x 1502F	Low	Std.	2A17922	16.36 / 415.5	14.50 / 368.3	C.E.*	111 / 50.3	4L17660
6	3"	1502F x 1502F	Low	Std.	2A17957	16.38 / 416	14.50 / 368.3	C.E.*	102 / 46.3	4L17660
7	3"	1502M x 1502F	Low	H2S	2A17281	16.38 / 416	14.50 / 368.3	C.E.*	111 / 50.3	4L17305
8	4"	1002M x 1002F	Low	Std.	2A17926	18.18 / 461.8	16.19 / 411.2	C.E.*	175 / 79.4	4L17721
9	4"	1502M x 1502F	Low	Std.	2A17567	20.41 / 518.4	21.20 / 538.5	C.E.*	266 / 120.7	4L17785

Note: Other parts or configurations may be available. Contact us for specific details. Listed weights are approximate. C.E.* — Contact Engineering.
