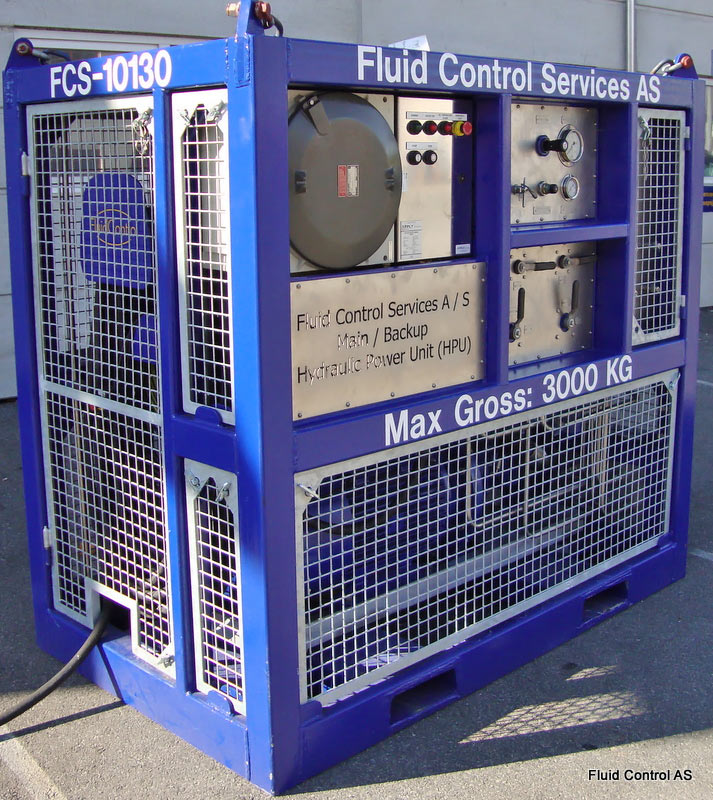

Hydraulic Power Unit (HPU)
ATEX-rated hydraulic power unit for offshore and subsea operations. Provides hydraulic supply for hose reels, spoolers, and other hydraulic-driven deck equipment.
Specifications
Max Oil Pressure (bar) 250 bar
Max Oil Flow (L/min) 160 L/min
Hydraulic Oil Tank Capacity (L) 400 L
Main Power Supply 400/690 V – 50/60 Hz
Power (kW) 60 kW
Operating Temperature (°C) -7 to +40 °C
ATEX Rating II 3G Ex db be IIB T3 Gb
Max. Gross Weight (kg) 3 000 kg
Outer Dimensions (L x W x H) (mm) 2 000 mm x 1 200 mm x 1 905 mm
Lifting Devices 4 points lifting chains
Classification ATEX 2014/34/EU, Machinery Directive 2006/42/EC, DNV GL 2.7-1, NORSOK Z-015
Connections Pressure out: Snap-tite 3/4" Female | Return: Snap-tite 3/4" Male | Drain: Snap-tite 3/8" Male | Load Sense: Snap-tite 3/8" Female | Oil Tank filling: Snap-tite 3/4" Female | Oil Tank Drain: Snap-tite 3/4" Male | Power cable: H07RNF 4G35MM2
