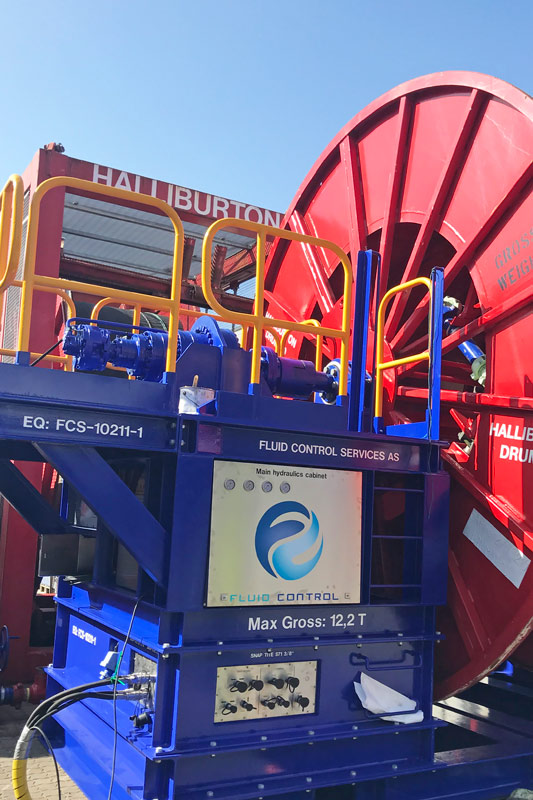

Hose Spooler Unit
Heavy-duty hydraulic hose spooler for controlled deployment and retrieval of large-bore hoses offshore. Radio remote or local manual control. Hose drum transported as a separate item. Supplied with certified lifting yoke and spreader bar.
Specifications
Pull Force (Inner Layer) (kg) 10 000 kg
Max. Drum Diameter (mm) 5 000 mm
Max. Drum Width (mm) 3 000 mm
Hydraulic Supply (L/min) 80 L/min
Max. Operating Pressure (bar) 210 bar
Torque @ 210 bar (kNm) 123 kNm
Drive 320cc Hydraulic Radial Piston Motor
Gearbox Planetary gearbox
Control Mode Remote radio or local manual control
Tare Weight (kg) 11 200 kg
Dimensions (L x W x H) (mm) 6 425 mm x 2 500 mm x 3 230 mm
Lifting Devices DNV 2.7-3 certified 4 points lifting sling and forklift pockets
