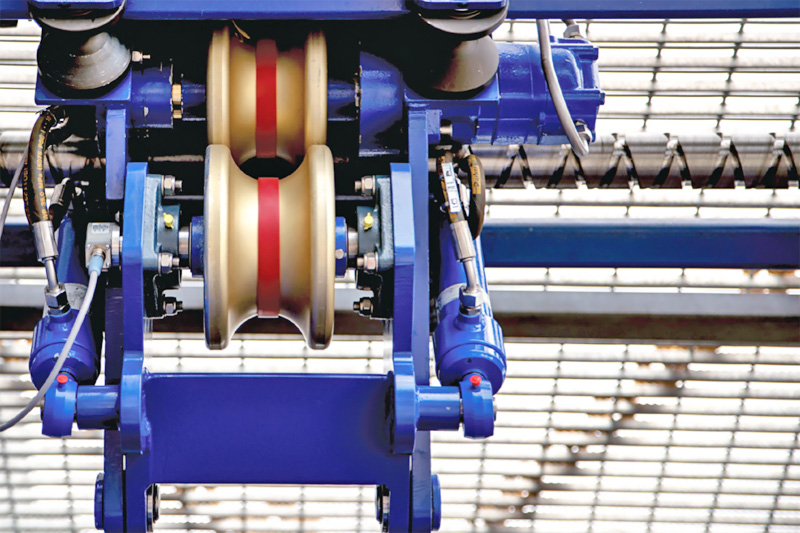

Hose Reel c/w Level Wind (4–6 inch)
Heavy-duty hydraulic hose reel with level wind for 4–6 inch hoses. Capacity for 1000m of SoluForce H515 (6ND). Supplied with certified lifting yoke and spreader bar.
Specifications
Tare Weight (kg) 18 608 kg
Overall Height (mm) 4 035 mm (including level wind)
Width (mm) 4 450 mm
Length (mm) 4 400 mm
Drum ID (mm) 2 600 mm
Drum OD (mm) 3 860 mm
Drum Width (mm) 2 940 mm
Pull Force (Inner Layer) (kg) 5 000 kg
Hydraulic Supply (L/min) 80 L/min
Max. Operating Pressure (bar) 200 bar
Storage Capacity 1 000 m of SoluForce H515 (6ND)
Drive SAI radial piston motor
Gearbox Twin reducing gear with angle drive
Control Mode Manual remote-control panel or local manual control
Lifting Devices Certified lifting yoke / spreader bar
Classification Machinery Directive 522, DNV 2.7-1
