Coiled Tubing Downline System (CTDL)

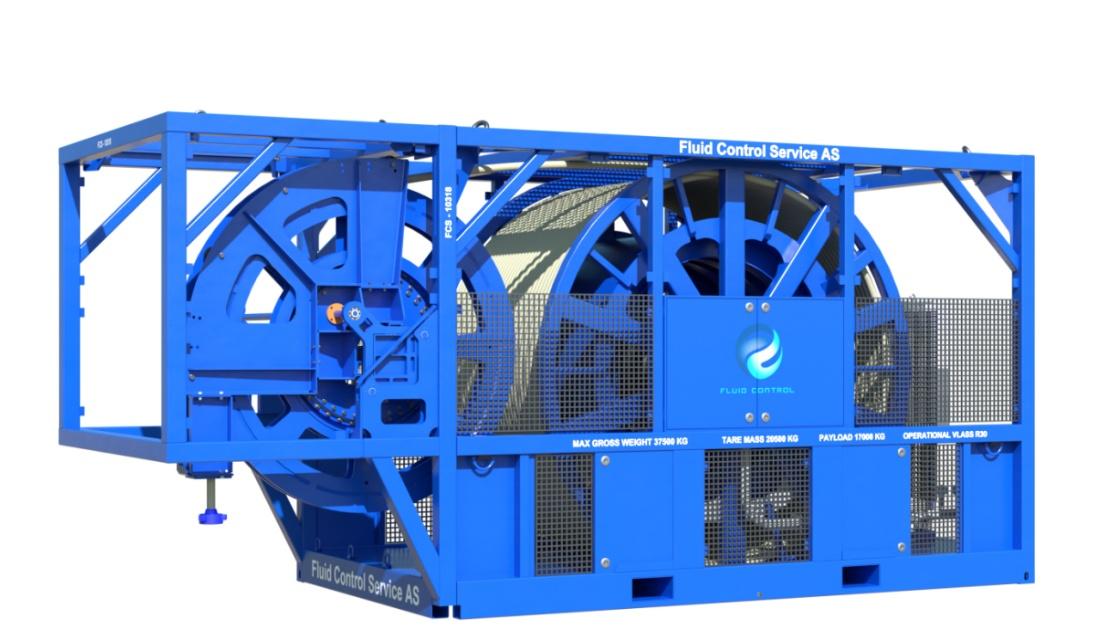

World-first all-electric coiled tubing downline system for deployment and retrieval of coiled tubing from multiservice vessels and offshore facilities. Comprising a matched pair of reel skids with all-electric liquid-cooled drive, planetary gearbox, and integrated level-wind sheave. Single lift 'Plug & Play' configuration. No hydraulic system — zero emissions, low operating cost, high uptime.
Specifications
Reel Capacity 2-3/8" OD x 0.203" WT: 2 400 m (17 790 kg pipe) | 2" OD x 0.203" WT: 2 600 m (16 090 kg pipe)
Flow Iron Connection 3" 1502 hammer union
Max. Pull Force (Outer Layer) 5 000 kg / 11 000 lb
SWL on Bare Drum 20 000 kg / 45 000 lb
Max. Rotational Speed (rpm) 4 rpm
Max. Pipe Speed (Empty Reel) 20 m/min
Max. Pipe Speed (Full Reel) 40 m/min
Rated Power (kW) 125 kW
Electrical Main Supply 380–480 V, 50–60 Hz, 180 A, 3 phases, 4 wires
Enclosure Rating IP56
Overall Dimensions (W x L x H) (mm) 3 200 x 8 000 x 3 780 mm
Tare Weight (kg) 17 000 kg
Rated Max. Gross Weight (kg) 37 500 kg
Reel Max. Load (Pipe + Fluid) (kg) 23 000 kg
Operating Temperature -20 to +50 °C
Design Temperature (°C) -20 °C
Classification DNVGL-ST-E273 / Class R30, Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
Applications Riserless Deepwater Intervention, Subsea Pipeline Pre-commissioning, Subsea Pipeline Decommissioning
