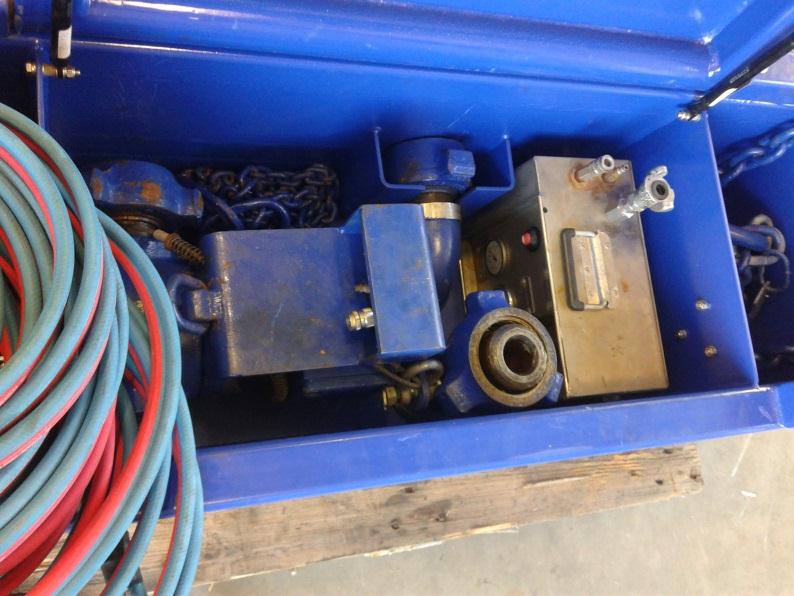

Case open with equipmentCase detail
Remotely Operated Plug Valve (Styrekoffert)
Plug valve with remote control panel, hoses and connections packaged in a DNV-certified transport case. Enables safe operation from unrestricted areas while the valve operates in restricted or hazardous zones. Remote operation range up to 20 metres.
Specifications
Weight 450 kg
Max Flow 2,543 l/min (12.8 m/s critical speed)
Bore Diameter 1.75"
Certification DNV 2.7-1
Test Pressure 15,000 psi
Air Connection Chicago coupling 0.75"
Control Medium Compressed air
Air Consumption 2.66 l/cycle (open/close)
Included Equipment 2" 1502 plug valve, 2" 1502 90° elbow, 2" 1502 M×F adapter, remote control panel, 20 m control hoses, safety chain
Remote Hose Length 20 m
Air Supply Pressure 8 bar
Operational Pressure 10,000 psi
Case Dimensions (L×W×H) 1,250 × 526 × 505 mm
