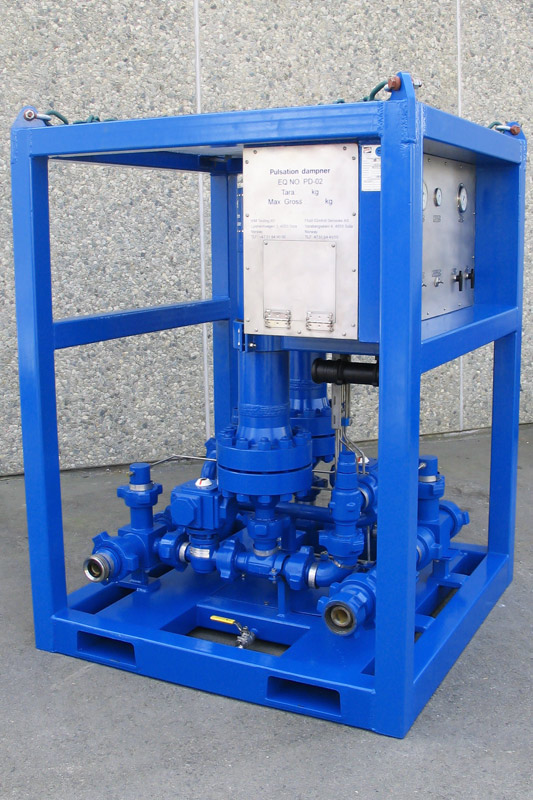

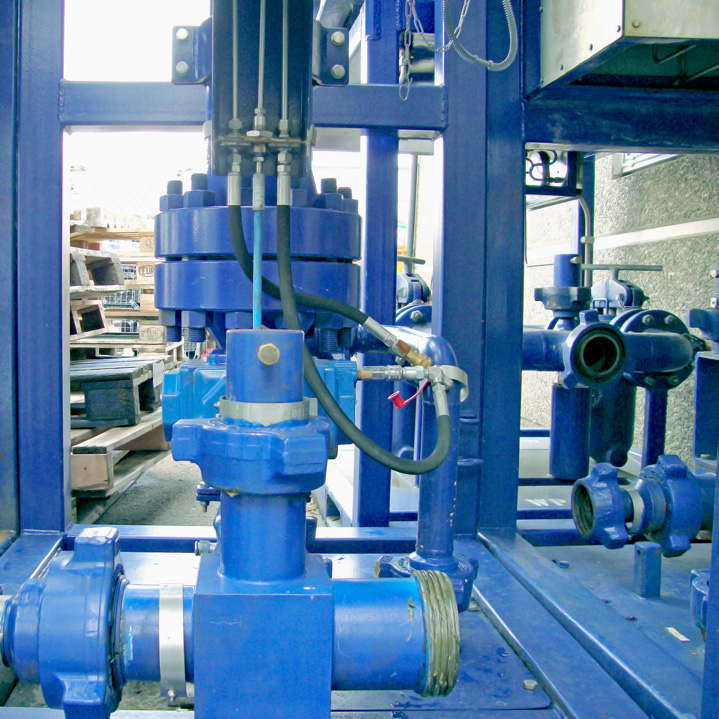

Full unitControl panelPump detailUnit (alt. view)
Pulsation Dampener
Hydraulic dampener unit that reduces damaging effects of fluid-flow pulsations in suction, discharge, and flowing hydraulic lines. Fully automated — works in tandem with plunger pumps to absorb pressure spikes and protect downstream equipment. Double-dampener units available.
Specifications
Lifting Fork lift pockets + 4-point lifting via chains to DNV 2.7-1 certified lifting lugs
Air Supply 7–10 bar (dry)
Certification DNV 2.7-1, NORSOK Z-015
Test Pressure 15,000 psi
Air Connection Offshore Chicago type (crows foot)
Inlet Connection 2" or 3" Fig 1502 Male/Female
Max Gross Weight 900 kg
Outlet Connection 2" or 3" Fig 1502 Male/Female
Operational Pressure 10,000 psi
Year of Construction 2014
Bore Diameter (piping) 2.75"
Outer Dimensions (L×W×H) 1,030 × 1,350 × 1,950 mm
