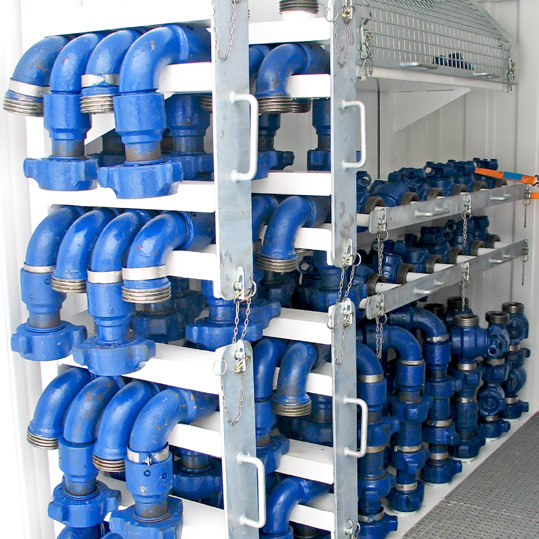

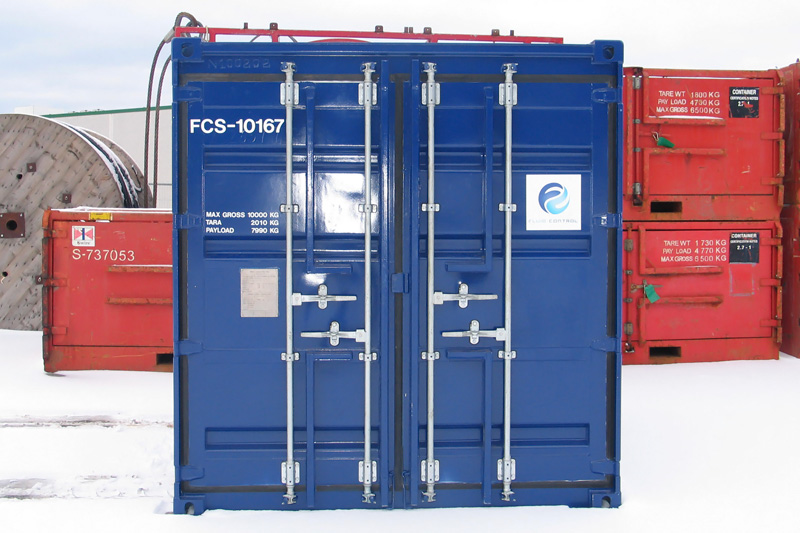

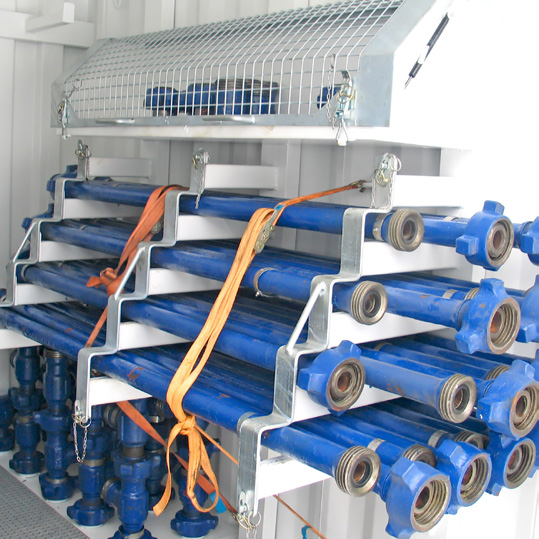

Interior overviewElbows rackStraights rackExterior (closed)
Chiksan Container
Purpose-built offshore container for safe transportation and storage of 2" Fig. 1502 Chiksan flowline equipment. Anti-slip floor, DNV 2.7-1 certified 4-point lifting, and NORSOK Z-015 compliant. Standard configuration includes 32 swings, 33 straights, 4 hose loops, 14 plug valves and 20 unions.
Specifications
Floor Anti-slip for safe manual handling
Lifting Fork lift pockets + 4-point lifting via chains to DNV 2.7-1 certified lifting lugs
Certification DNV 2.7-1, NORSOK Z-015
Max Gross Weight 10,300 kg
Standard Contents 32 swings, 33 × 7.5' straights, 4 steel hose loops, 14 plug valves, 20 × 2" 1502 unions (floor-mounted), 2 shelves, floor space for 2 pallets
Year of Construction 2014
Piping Diameter (bore) 2"
Operational Pressure (H2S) 690 bar / 10,000 psi
Operational Pressure (STD) 1,034 bar / 15,000 psi
Outer Dimensions (L×W×H) 2,986 × 2,436 × 2,588 mm
