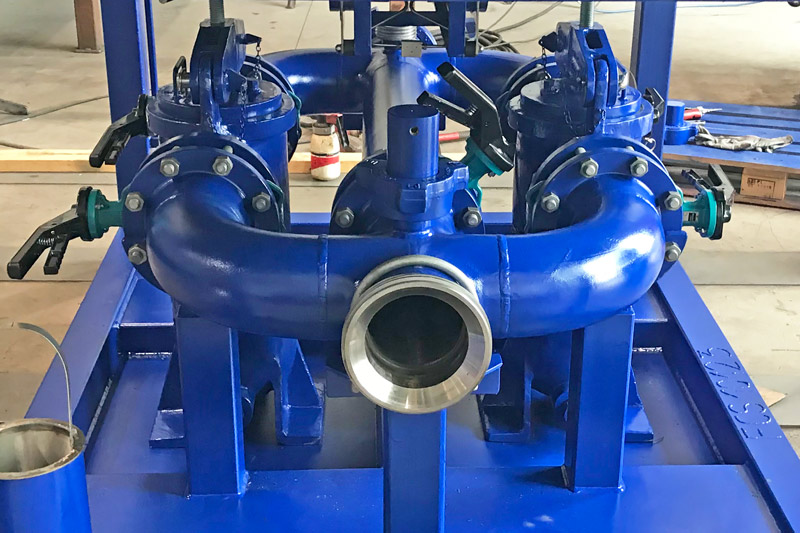

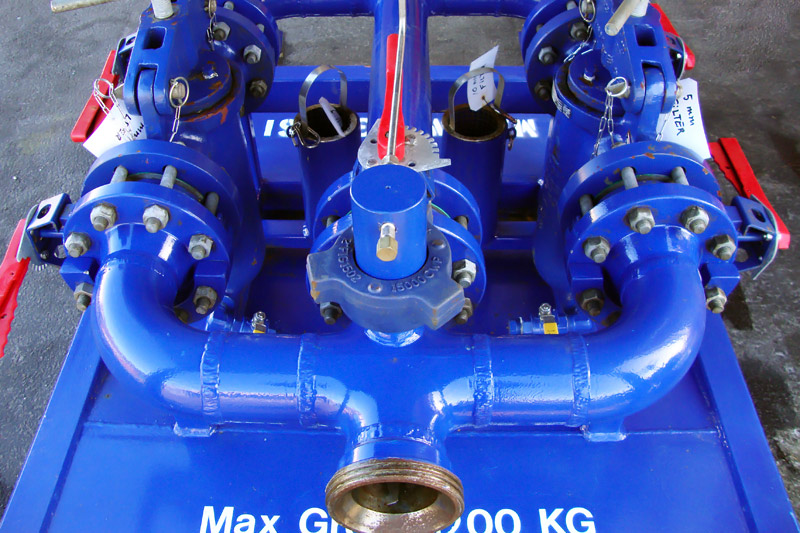

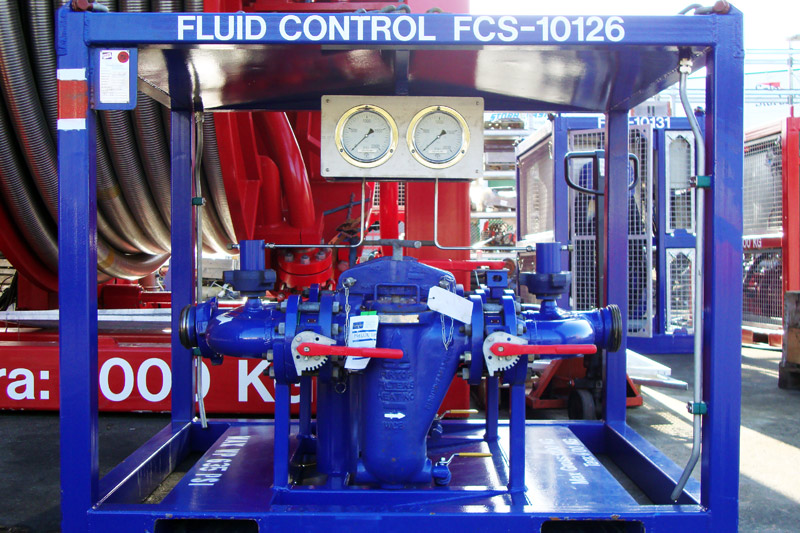

Overview (6")Filter housingOverview (4")Filter housing (4")
Basket Filter Unit
Barton Firtop Twin Filter Units for offshore fluid filtration — protecting valves and equipment from contamination. Available in 6" and 4" configurations. DNV 2.7-1 certified frame and lifting, with forklift pockets and 4-point lifting lugs.
Specifications
Filter Type Strainer basket (3mm standard; other sizes available)
6" — Inlet 6" Fig 206 Male
6" — Outlet 6" Fig 150 Female
Certification DNV 2.7-1
4" — Inlet/Outlet 4" 300# RF
4" — Piping Diameter 100 mm (4")
6" — Piping Diameter 150 mm (6")
4" — Max Gross Weight 600 kg
6" — Max Gross Weight 2,000 kg
6" — Temperature Range -29°C to +500°C
4" — Dimensions (L×W×H) 1,760 × 1,360 × 1,440 mm
4" — Operational Pressure 43 bar / 635 psi
6" — Dimensions (L×W×H) 2,200 × 1,600 × 1,300 mm
6" — Operational Pressure 19.2 bar / 278 psi
