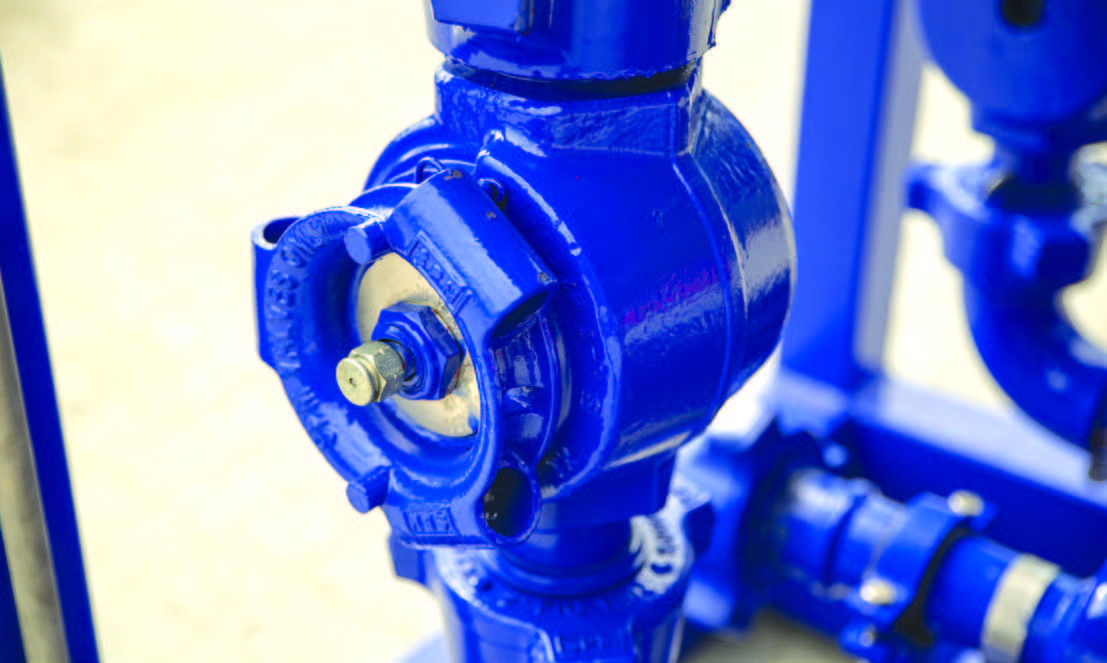

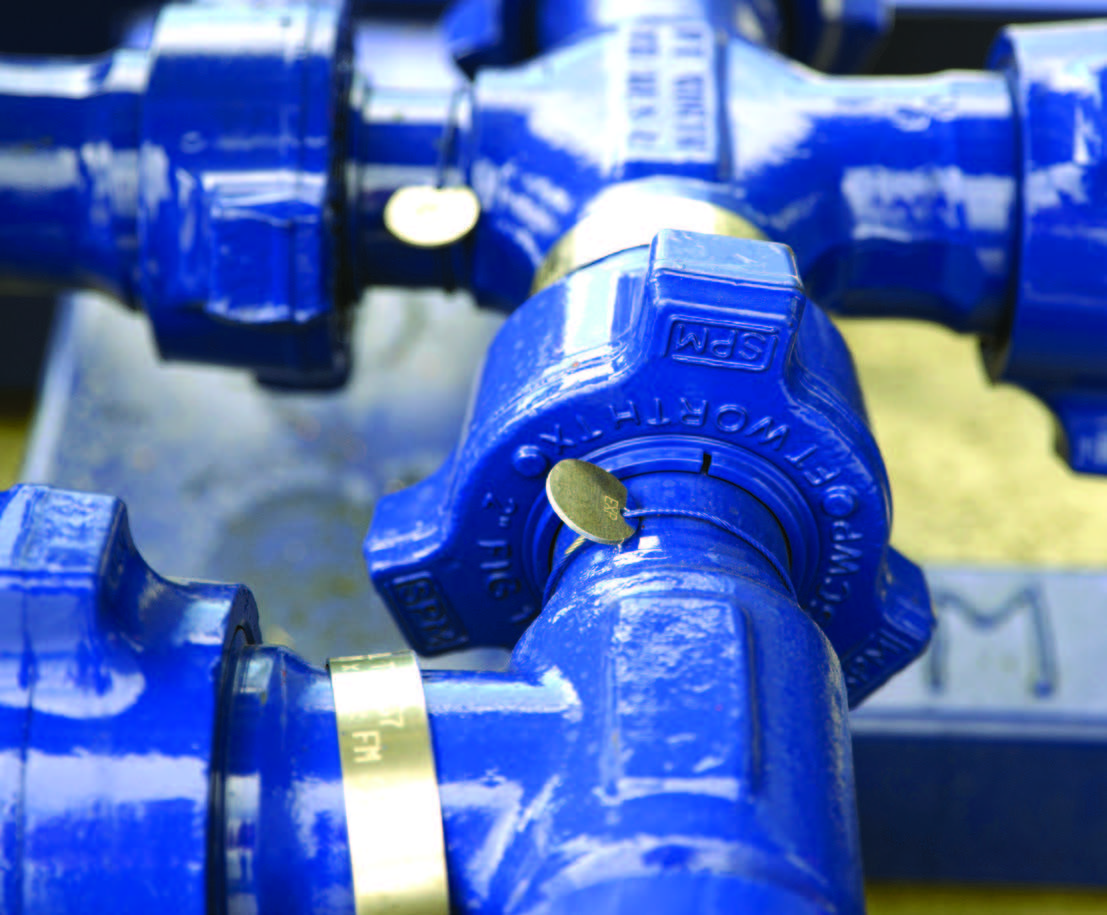

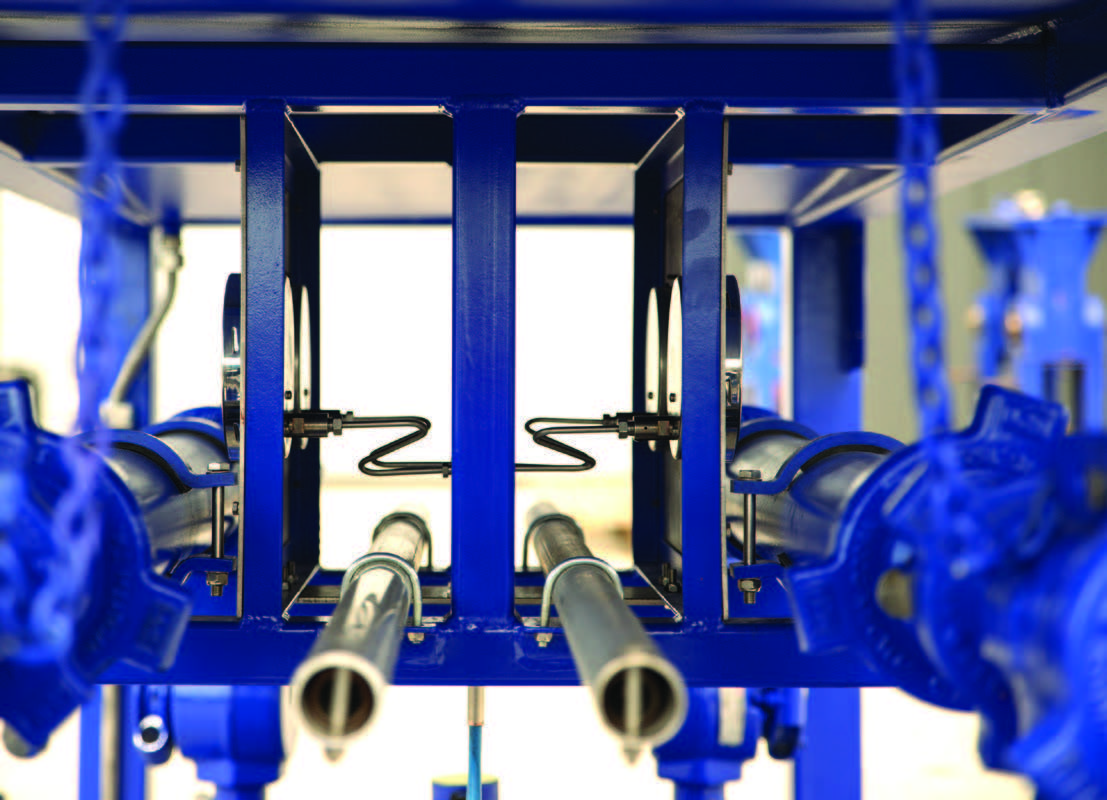

Full unitFilter housingValve detailSPM connection
2" High Pressure Filter Manifold
High-pressure filter manifold designed to protect valves and equipment from contamination in offshore fluid control applications. Features dual inlet ports, differential pressure gauges on both sides, and optional shut-off valves for fast filter changes without system shutdown.
Specifications
Inlet 2" 1502 Male
Outlet 2" 1502 Female
Weight 2,000 kg
Max Flow 7.5 BPM (12.8 m/s critical speed)
Bleed Off 9/16" M.P. Autoclave
Inlet Ports Two (accessible from both sides)
Filter Range 300–1,500 micron
Certification DNV 2.7-1 (frame & lifting)
Test Pressure 15,000 PSI
Iron Components SPM tees, bends, plug valves and pup joints — DNV approved
Pressure Gauges Both sides (differential pressure reading)
Dimensions (L×W×H) 2.6 m × 1.1 m × 1.4 m
Operational Pressure 10,000 PSI
